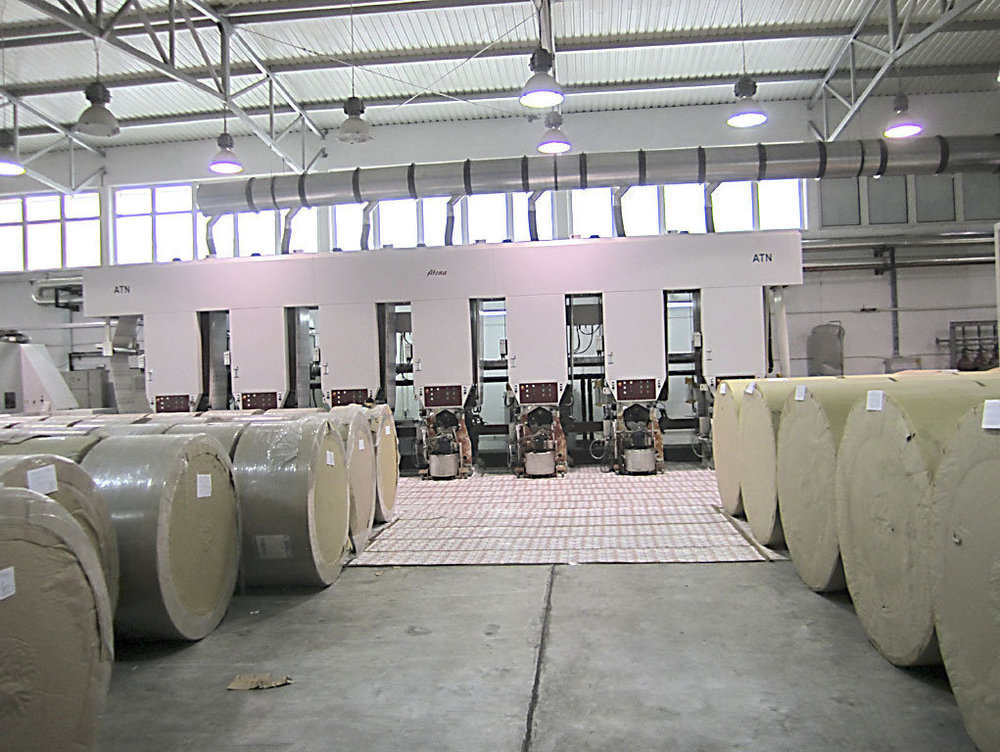

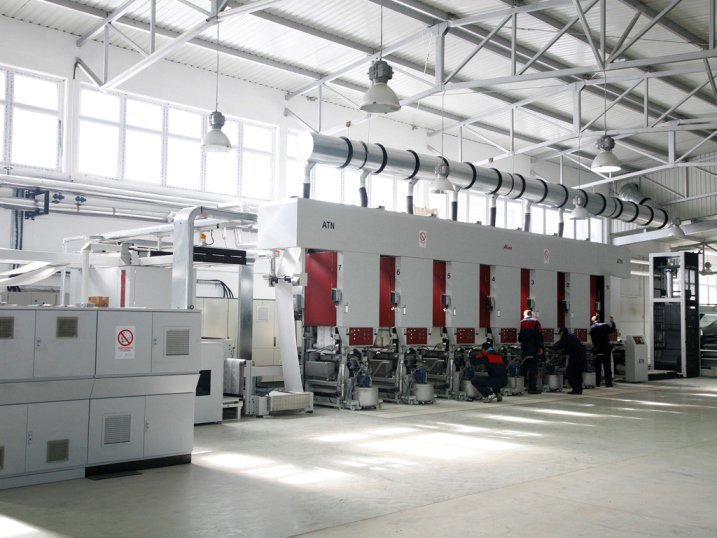

ATENA RDC 10 from 2007

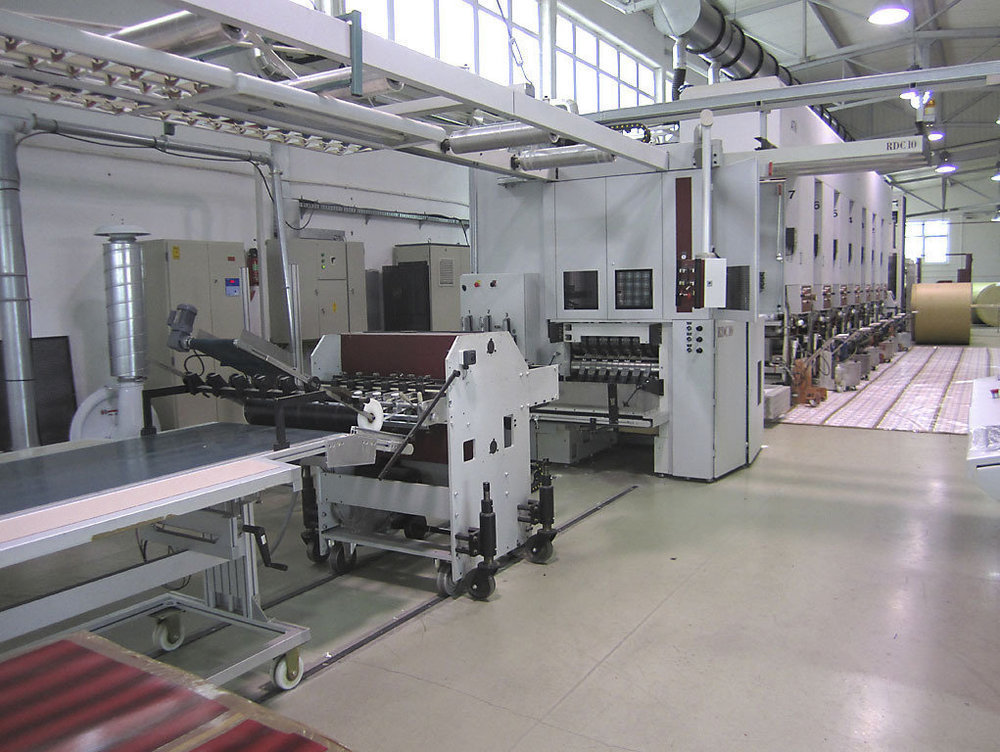

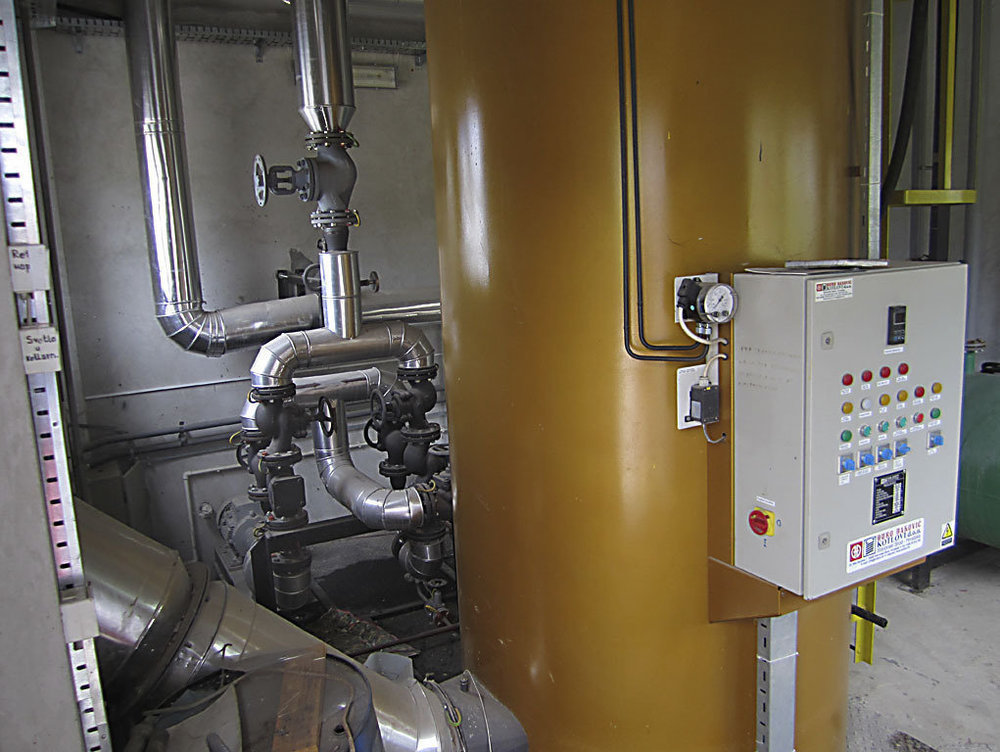

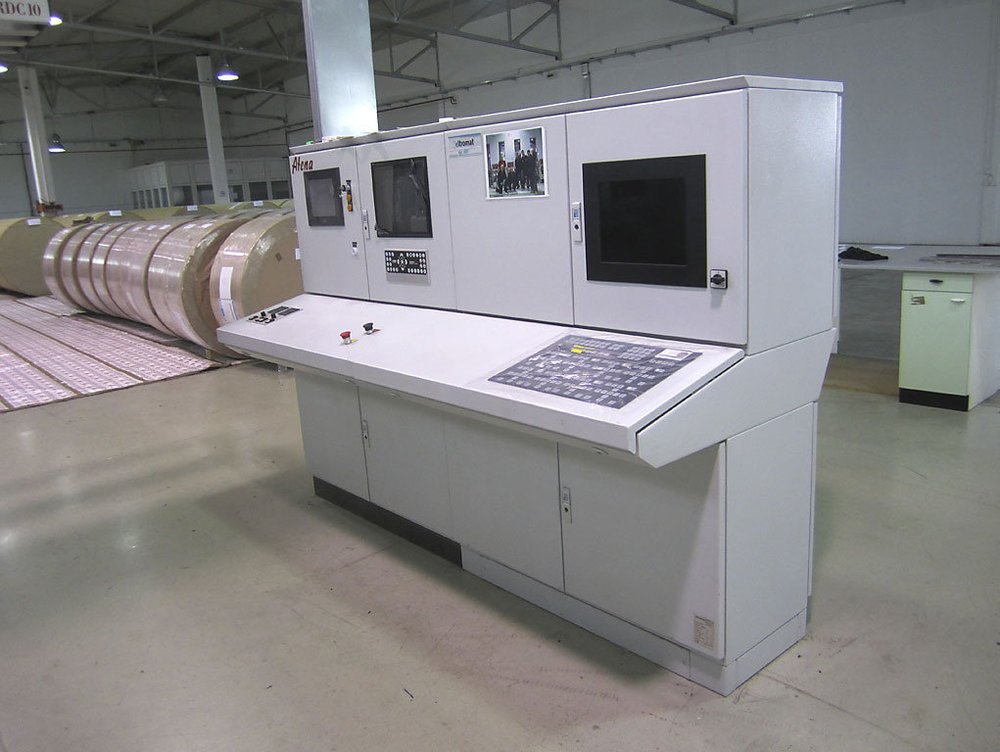

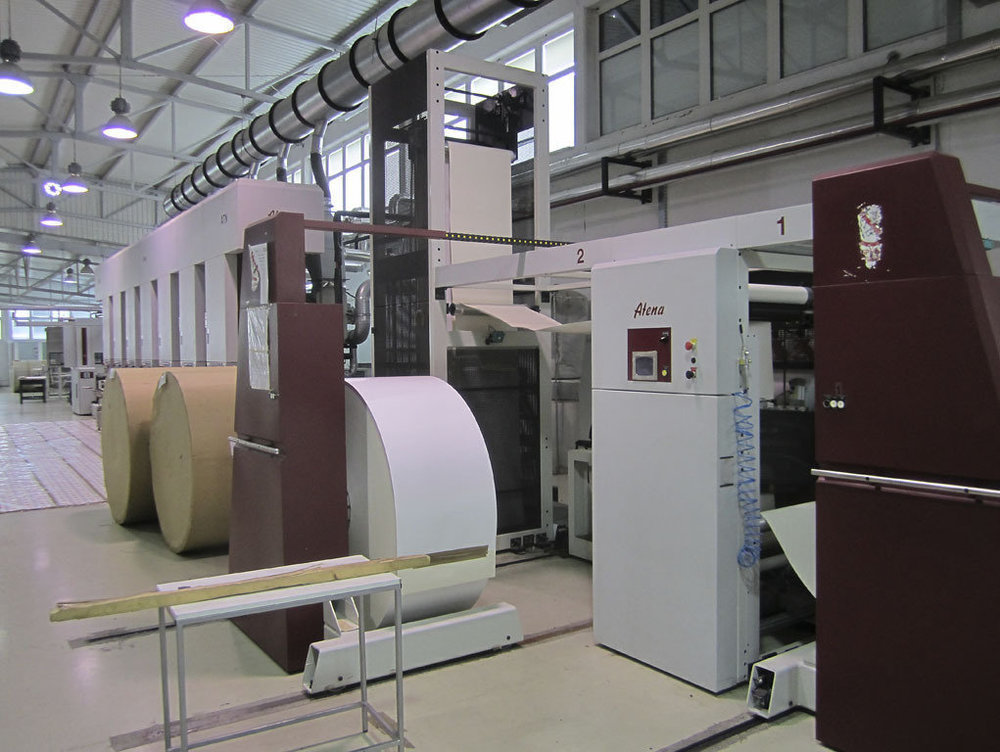

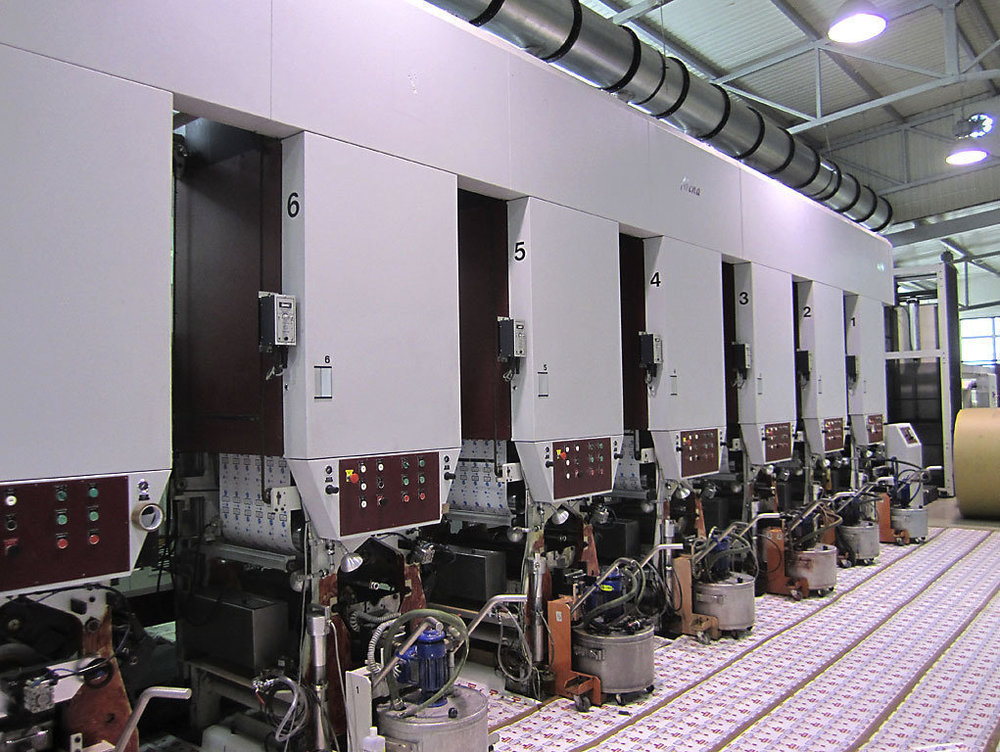

Machine designed for: Production of cigarettes packaging, Paper labels and Cardboard packaging<>Counter 12.136.991 impressions<>3x stage rotary die cutting unit RDC10<>Drying: thermo-oil installation<>DGC 650 from Eltromat Register control<>67x printing cylinders (13 steel base only and 54 copper covered)<>3x sets of cutting + creasing tools (buyer can’t use the whole tool, only original ATN cassettes in which the tools are packed)<>The splicing device is mounted on a robust fixed frame. Two independent sliding rules allow the easy-on-both-side pasting preparation<>1. Quick stop of the finishing reel<>2. Locking the web entering the festoon<>3. Locking on the finishing and the new webs by suction boxes<>4. Oblique cut by symmetrical guillotine knives<>5. Evacuation of the tips<>6. Simultaneous application of the two tapes by means of oscillating arms<>7. Unlocking of the web by releasing the nip rollers and the suction<>8. Acceleration of the reel to fill up the festoon<>9. Tension control at the production speed thanks to a loaded air piston and the 4Q DC drive<>This unit eliminates dust or foreign particles on the web<>1 Vacuum head made of aluminium<>2x Electrodes for ionisation ensuring elimination of static charges<>1 Set of static brushes<>1 Dust recuperation bag positioned on the machine drive side<>The positive infeed unit with constant tension<>2 electrostatic assistance units from Eltex for a better inking are included<>Doctor blade<>The doctor blade is arranged with three knuckles<>A chill roll <>Longitudinal sidelay register control<>Type DGC 650 from Eltromat<>1 Rotary decurler<>1 Spreading unit<>1 Electrical equipment<>1 Universal sheeting tool<>1 Slitting unit with 2 scissor knives (for the 2 trims) placed on the pull-through unit<>1 Trim exhauster with pipes and suction pump placed closed to the machine<>The cutting cassette is installed like a cutting tool on the RDC third stage<>1 High pile receptacle <>1 Single shaft rewinder RHS<>1 Automatic edge guide<>1 Single pneumatic expanding shaft for cores inner diameter 76 mm<>1 Motor<>Lift of the reel from the floor<>Web cleaner<>WEB guide system<>Turn bar
