Offer 381275

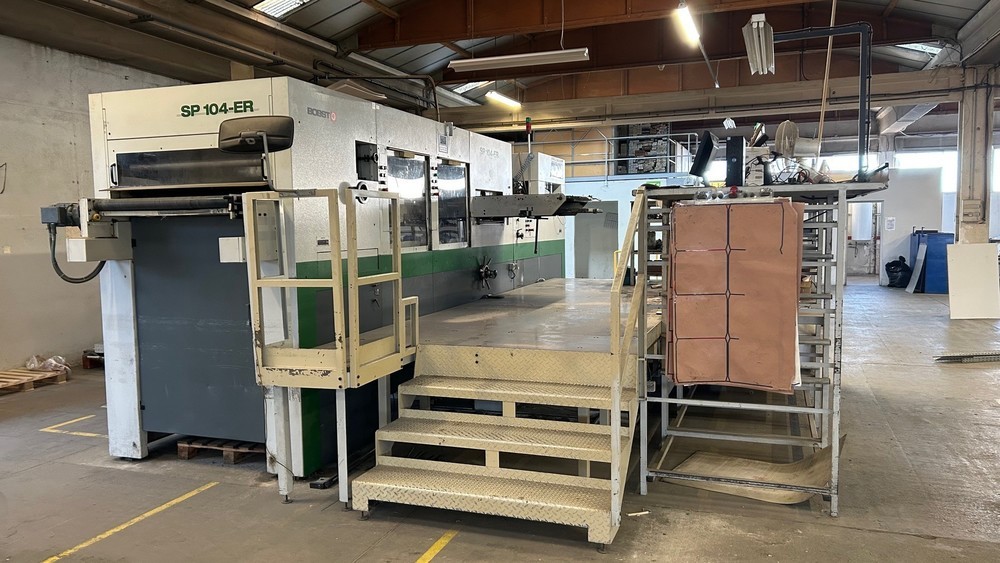

BOBST SP 104 ER from 2001
Die Cutter (Flatbed)
Offer Details
| Offer Number: | 381275 |
|---|---|
| Brand: | BOBST |
| Model: | SP 104 ER |
| Manufacturer | BOBST |
| Condition: | Good |
| Year: | 2001 |
| Incoterm: | |
| Cylinders Condition: | |
| Under Power: | Yes |
| Still in production: | Yes |
| Test possible: | Yes |
| Complete and in working condition: | Yes |
| Availability: | |
| Counter: | |
| Machine number: | |
| Description: | M3B type feeder with stack movement and handle.<>A screw-on bottom forming frame with quick clamping for full format and resin protective plate.<>4 mm cutting plate with micrometric system.<>Mechanical double sheet<>Left margin puller stops.<>Optional lowering of the conveyor belt for Cppertinax mounting.<>A complete set of upper and lower ejection frames.<>An upper frame for conventional delivery outfeed.<>A lower delivery frame for conventional delivery outfeed.<>A preparation table with bar and needle equipment for traditional ejection.<>Chain train in very good condition with clear markings.<>Clutch rebuilt. All machine documentation. |
Technical details
| Sheet size max | 1040x740 mm |
|---|---|
| Sheet size min. | 400x350 mm |
| Platen pressure max. | 250 tons |
| Production speed | 8.000 sheets/h. |
| Paper | 80 |
| Carton Board | 2,000 g/m² |
| Corrugated board | 4 mm |
| HS Code | 84439959 HS Codes Classification of Other |
