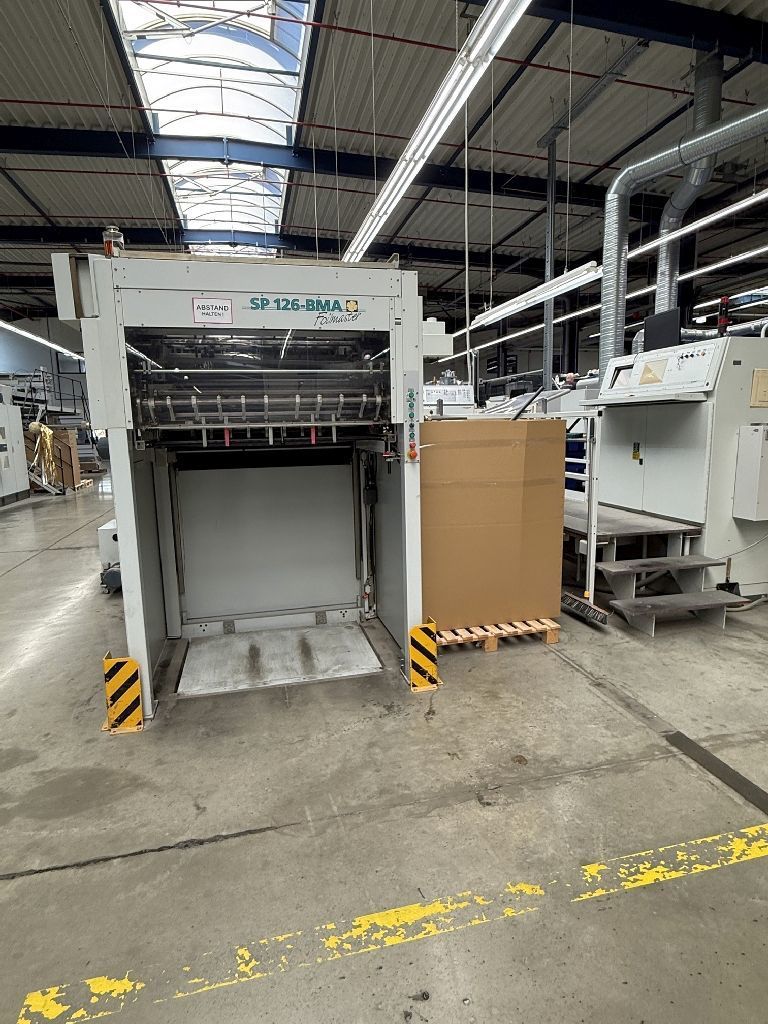

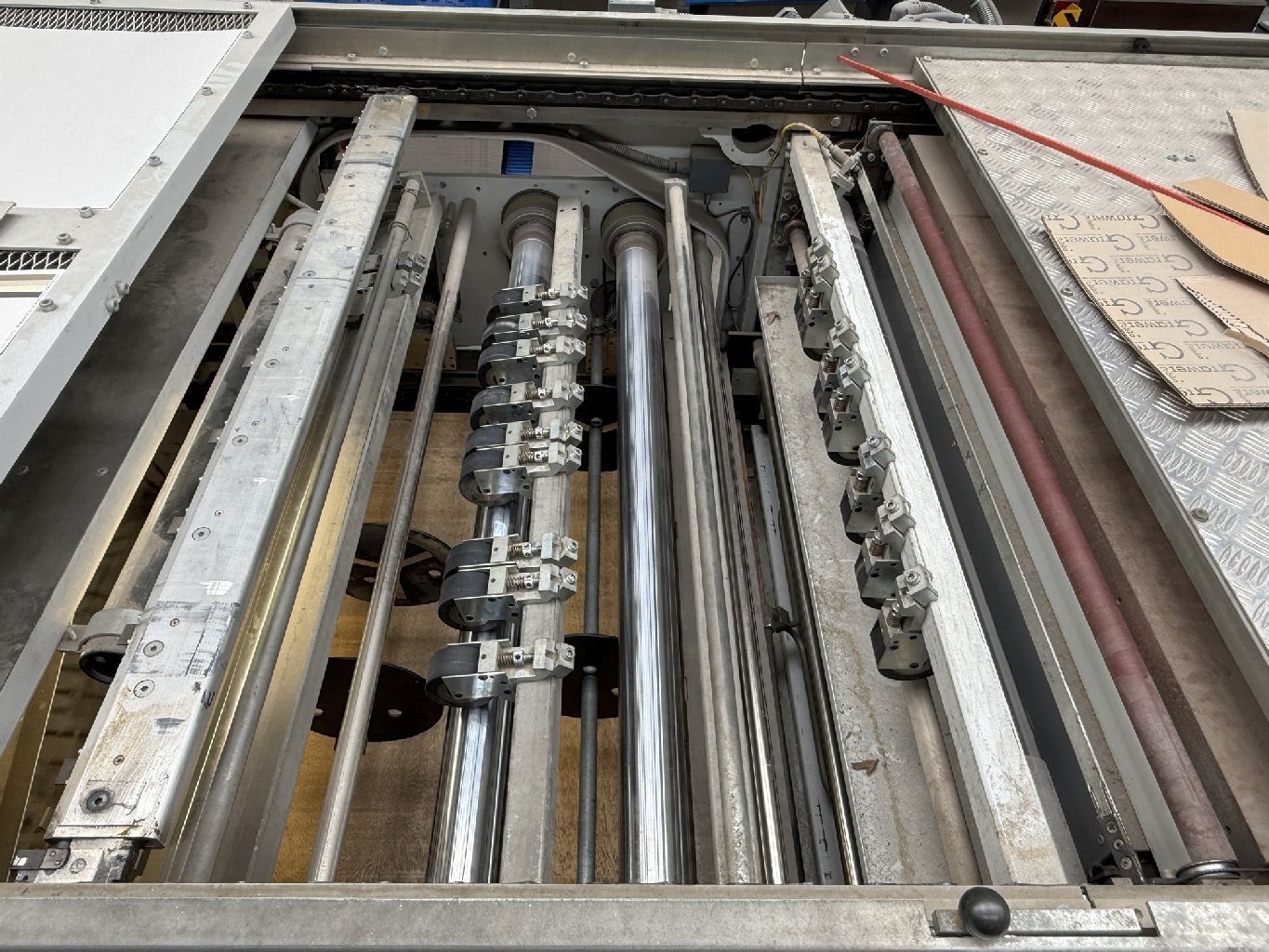

pallet feeder with manual non-stop bars, pallet support plate with adjustable lateral stacking position, suction unit with manual length and height adjustment<>2 side blowers, adjustable to centreline<>feeder table<>(coated with stainless steel sheet with an antistatic effect) with<>4 fixed-position conveyor belts with automatic belt tensioning<>conveyor equipment for paper, cardboard and corrugated board up to 3 mm<>conveyor belt deceleration device for gentle sheet feeding to the<>front guide (particularly important when processing paper)<>6 front guides, individually adjustable, with dust-resistant inductive sensors<>1 side pull mark (BS) adjustable via centreline and convertible to a stop mark<>electric sheet control and double-sheet control<>sheet synchronisation device for manual adjustment of the feeder cycle to the die-cutting cycle during machine operation<>upper platen with 16 individually adjustable heating zones with the following<>equipment for embossing:<>gripper reopening device<>1 steel base plate, 23.5 mm thick<>extendable embossing foil printing unit<>cassette trolley with:<>3 motor-driven, adjustable foil feed shafts<>2 telescopic slide rails for roll holders<>4 roll holder cross-axles<>3 sets of 8 roll holder levers combined with 1‘ and 3’ hubs for rolls with a width of max. 50 mm, max. 100 mm, greater than 100 mm with brake<>15 narrow drive rollers, 14 mm wide<>15 wide drive rollers, 38 mm wide<>1 removable support (GBS) for extending and retracting the BMA device<>special BMA devices in the machine:<>1 device for manually feeding the film strips<>1 nozzle blower for peeling off the film strips after embossing<>1 blower in the platen for stabilising the sheet (e.g. paper before the embossing or die-cutting process)<>1 film strip guide over the upper platen<>1 film strip tensioning shaft with drive motor<>1 film strip break detector with 16 laterally adjustable photocells for emergency stop of the machine in the event of a film strip break<>1 lateral film strip ejector for embossed films, with step-controlled<>rotating brushes<>1 film longitudinal cutting device for cutting wide film webs<>stack delivery with: pallet support plate, rear and side straighteners, automatic non-stop conveyor belt, rotatable front straighteners (pneumatically controlled) for removing a control sheet whilst the machine is running<>1 sheet brake brush<>centreline system for preparing all tools outside the machine, quick and precise insertion of tools into the machine, quick adjustment of all format-dependent machine elements at the feeder, on the<>feeding table and in the delivery<>safety devices, safety contacts that prevent the machine from starting up when safety guards are open<>locking device for the gripper bar chains when the machine is at a standstill<>safety barrier<>at the feeder (photocells)<>at the waste ejection station<>at the delivery (photocells)<>safety slip clutch on the drive shaft of the gripper bar chain drive<>the supplied machine equipment complies with the applicable CE regulations.<>BOBST Electronic System with air-conditioned control cabinet for the electrical and electronic<>control equipment, machine speed display, control panel with touchscreen and printer for setting the operating parameters for<>foil stamping (temperature zones, foil feed, machine start-up, blow air for foil/sheet separation)<>OACS software (Optimal Advance Computing System) for calculating the optimal<>web feed (for 3 feed shafts)<>the web feed is selected in several calculation steps so that, for the<>underlying layout, minimum foil web consumption is achieved.<>1 main control panel and<>3 auxiliary control panels (feeder, waste ejection station, delivery)<>sheet passage monitoring with infrared photoelectric sensors, suitable for non-transparent, transparent<>and reflective sheet surfaces<>operating hours counter<>sheet counter with<>printing pressure gauge with pressure limit<>automatic platen pressure adjustment ‘ON-OFF’<>activated when no sheet is present in the platen to prevent contact between the foil and the plate<>main drive<>frequency-controlled asynchronous motor<>podium<>machine height 410 mm with steel base<>OPTIONAL EQUIPMENT:<>FEED TABLE<>1 Side registration mark (GBS)<>with electric sheet control and adjustment via centreline<>1 Non-contact double-sheet control<>(ultrasonic)<>DIE PLATE<>ADDITIONAL EQUIPMENT FOR FOIL STAMPING OR<>COLD STAMPING<>2 honeycomb plate with fixing hooks<>for 7 mm plates<>2 foil stamping plate, 2.3 mm thick<>1 registration guide<>for aligning the foil stamping plates<>1 Special clamping frame for interchangeable plate carrier<>speciality No. E-70 / 500 191_07<>3 Special die-holder plates including mounting screws<>speciality No. E-72 / 500 191_07<>1 Special setup table for plate carrier<>speciality No. E-74 / 500 191_07<>additional equipment BM<>speciality: Roll holder lever for roll widths > 700 mm<>roll set-up tables<>equipment for 1” and 3” hubs<>including 3 sets of 8 roll holder levers combined with 1” and 3” hubs
