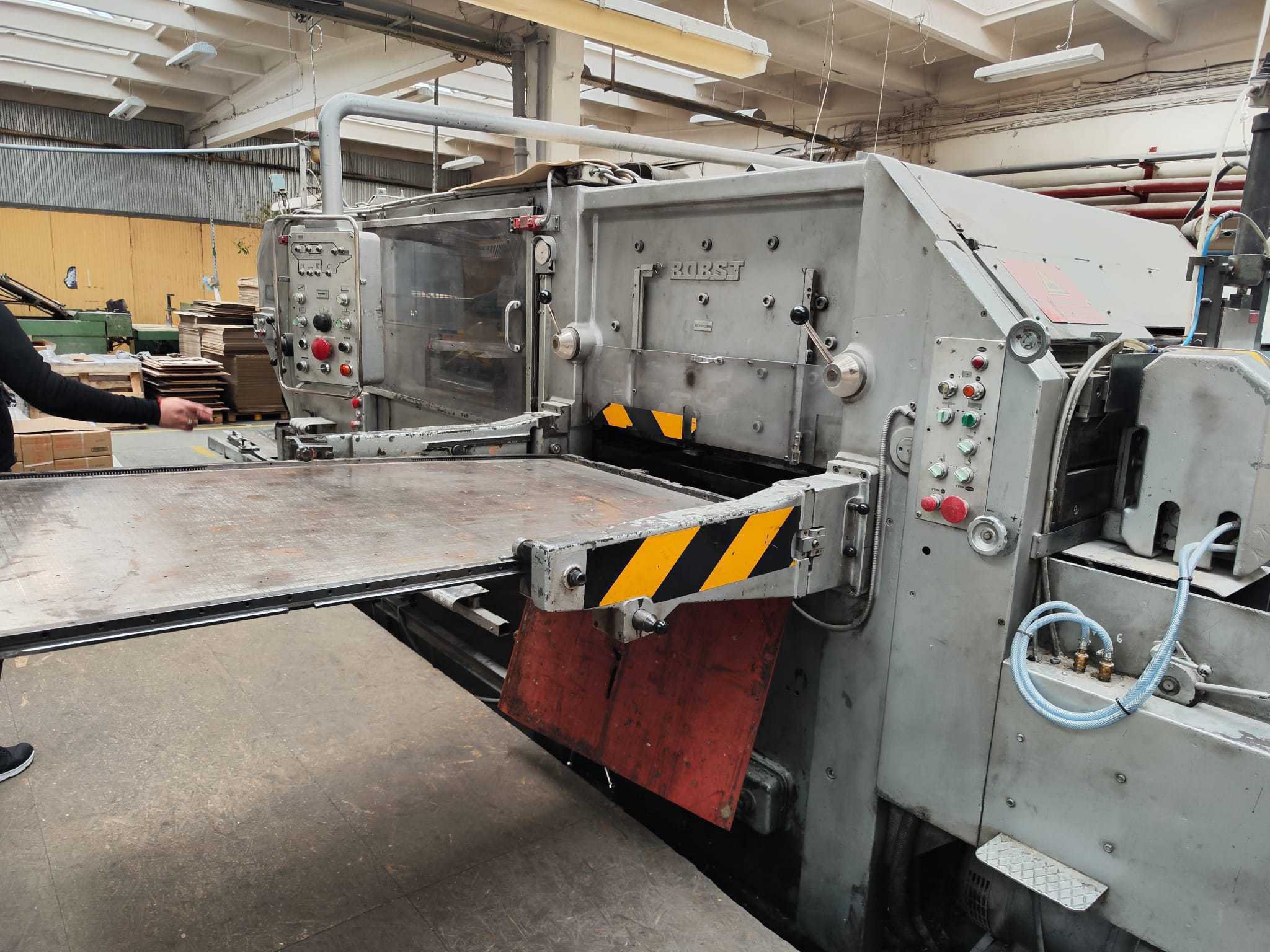

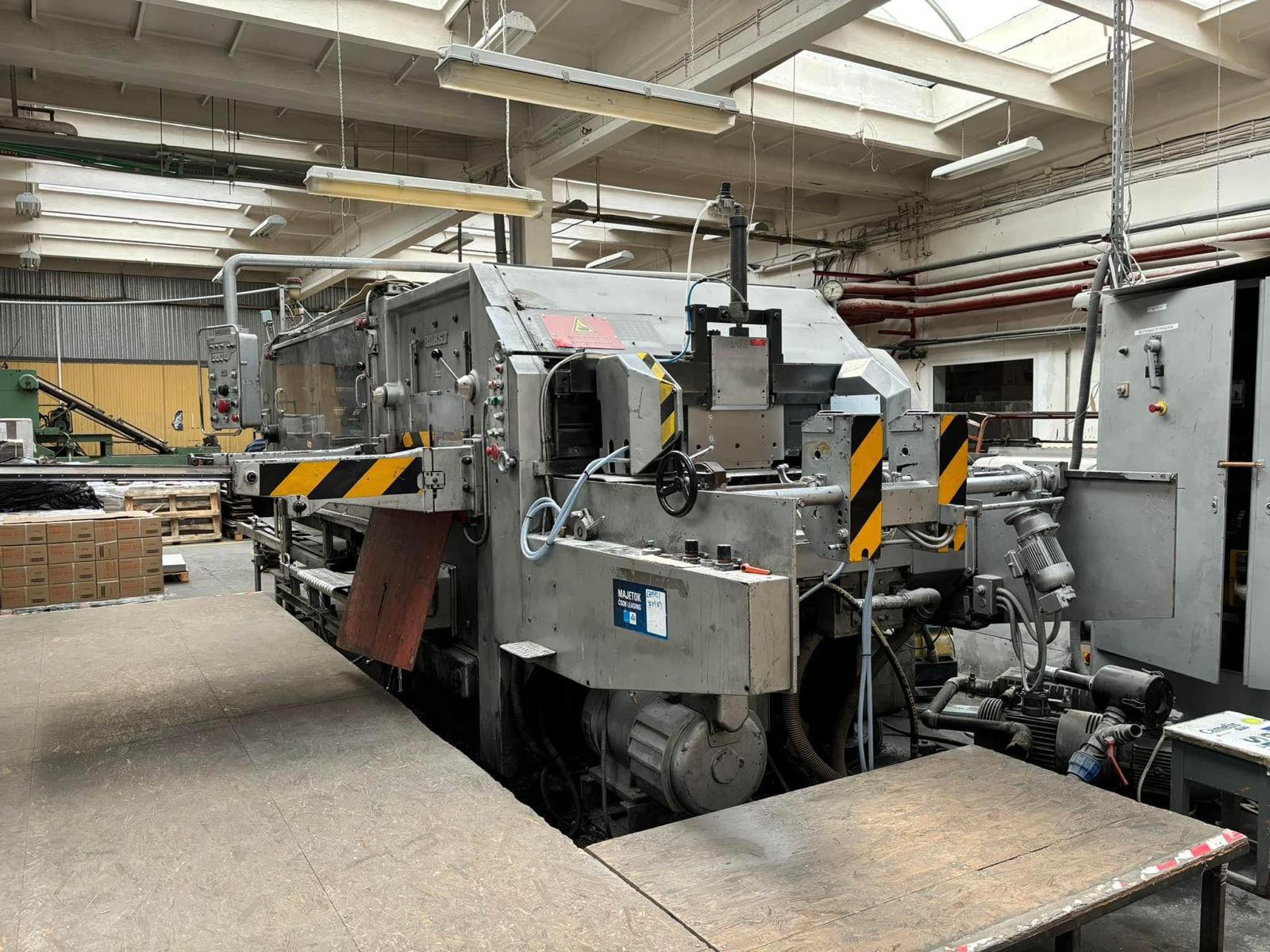

Offer 373775, a BOBST SPO 1575 EEG from 1971
Die Cutter (Flatbed)
Offer Number |
373775 |
Manufacturer |
BOBST |
Model |
SPO 1575 EEG |
Year |
1971 |
Counter |
|
In Production |
Yes |
Upon Request
Description
Automatic Introduction With Large Vacuum Plate, Double Sheet Cleaning Station Unit, Turn Die Cutting Frame, Cutting Force 300 TON, 4.500 Speed/H, Working With Corrugated Cardboard Of Thickness Max. 9,5 mm, Min. 0,8mm, The Machine Can Cut On Micro-Corrugated Cardboard, Jobs Quick Change Device,Non-stop in feeder + deliveryBatch delivery
Technical Details
- Max Sheet width: 1575 mm
- Min Sheet width: 620 mm
- Max Sheet lenght: 1040 mm
- Min Sheet lenght: 550 mm
- Height of cutting rules: 23,8 + 28,57 mm
- Platen pressure max.: 350 t.
- Production speed: 4.500 sheets/h.
- Total power consumption: 35 KW
- Weight approx.: 36 tons
- Setup: Manual
- Feeder type: Vacuum Plate
- Cutting plate: Normal
- Delivery system: Bundle stacker
Offer Details
- Brand: BOBST
- Model: SPO 1575 EEG
- Condition: Good
- Year: 1971
- Country: Europe
- Under Power: Yes
- Still in production: Yes
- Test possible: Yes
- Complete and in working condition: Yes
