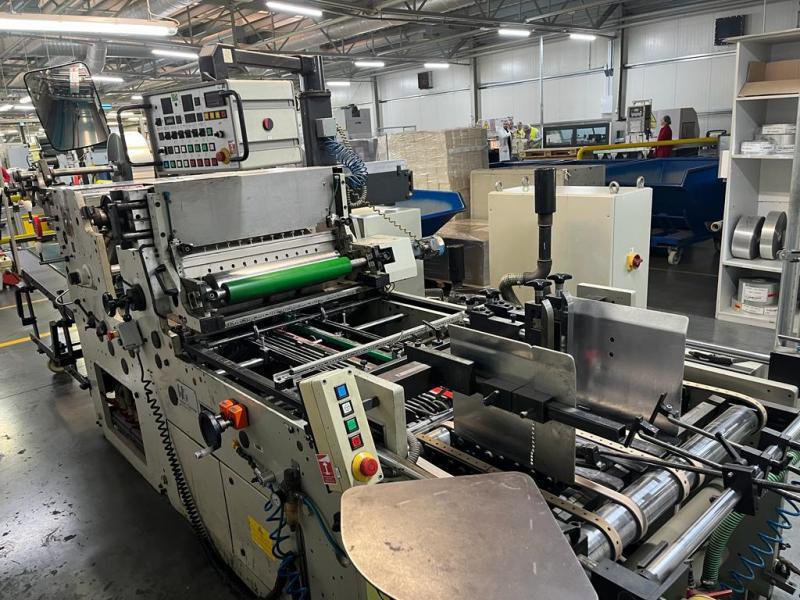

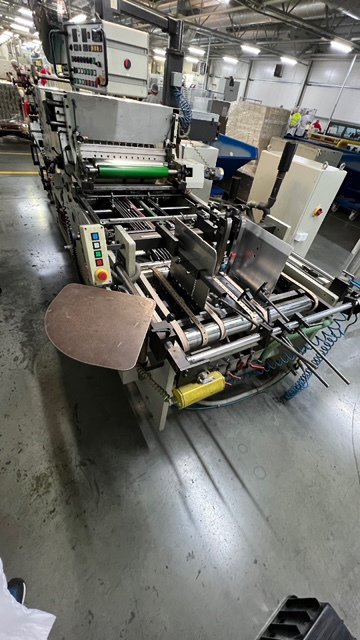

Model WP 8<>Suction belt stream feeder<>Gluing unit<>Film unwind and cutting unit<>Shingle Delivery<>Speed: 335 blanks per minute below 560mm blank width<>Speed: 165 blanks per minute above 560mm blank width<>Min Blank size: 80 x 100mm<>Max Blank size: 800 x 1020mm<>Min Window size: 30 x 60 mm<>Max Window size: 540 x 720mm<>Material weight: 160-600 g/m2<>1 track:<>Cutting length: 100 - 1020 mm<>Cutting width: 80-800 mm<>Window length: 50-720 mm<>Window width: 30-540 mm<>Speed relative to the length of the blank:<>< 310 mm - 50,000 pcs/h<>310-500 mm - 30,000 pcs/h<>>500 mm - 15,000 pcs/h
