Offer 383666

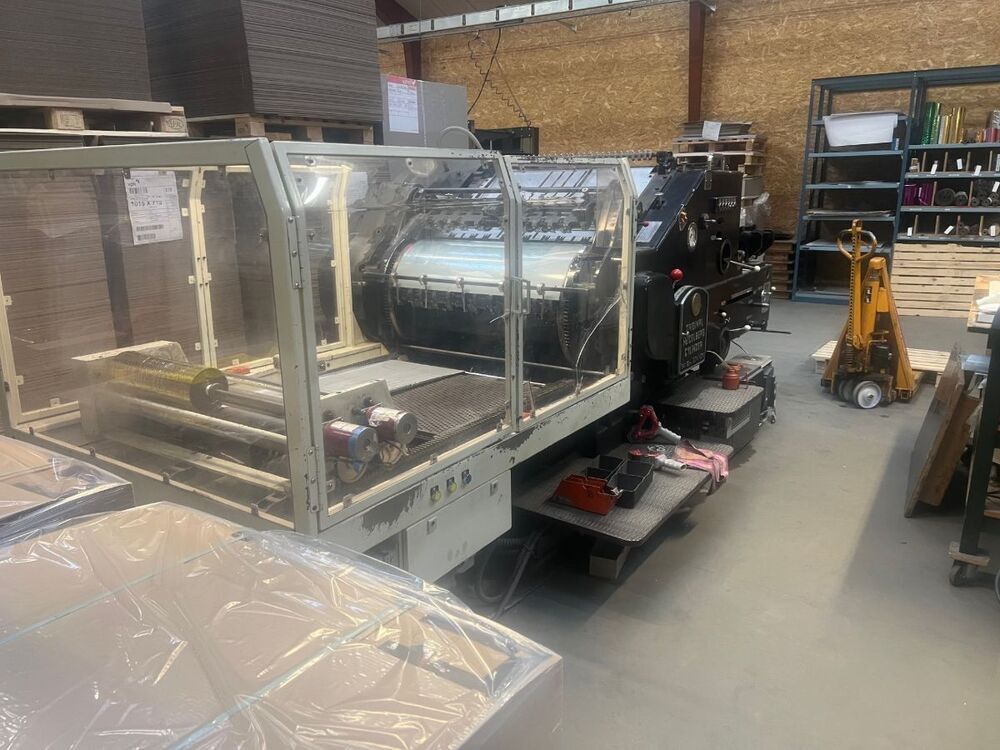

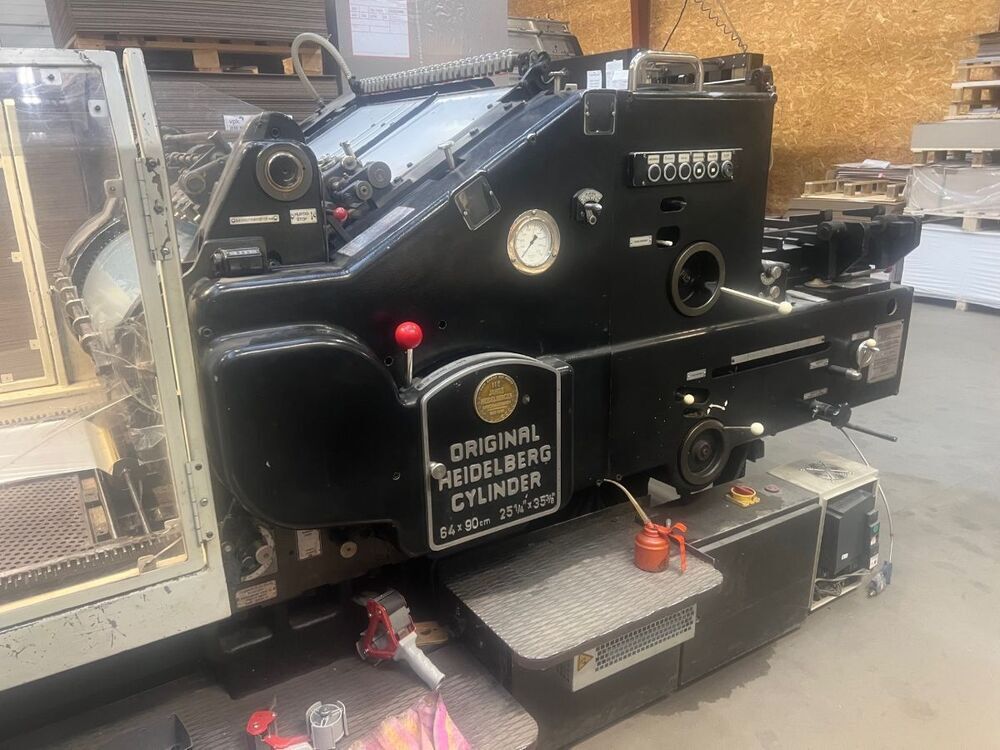

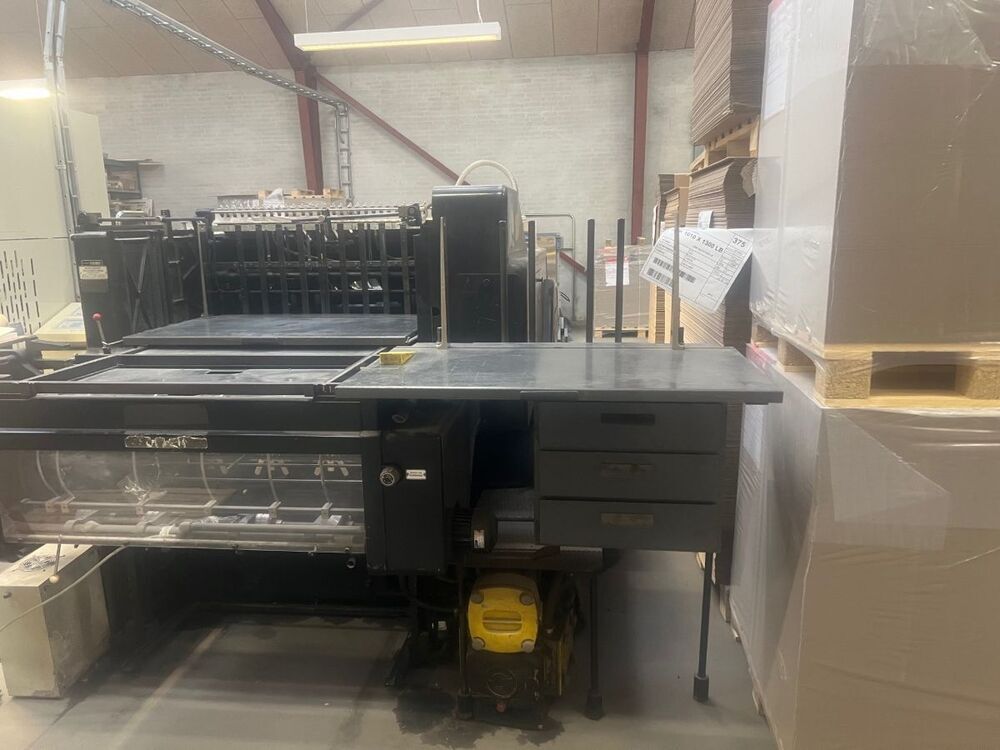

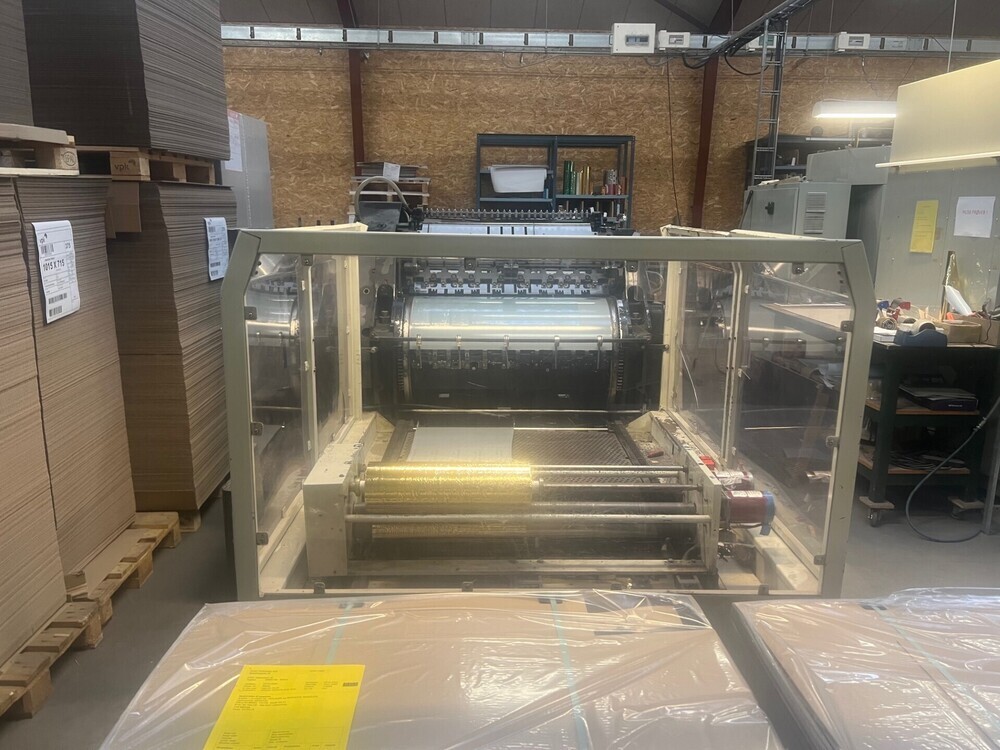

HEIDELBERG SBD from 1969
Cylinder
Offer Details
| Offer Number: | 383666 |
|---|---|
| Brand: | HEIDELBERG |
| Model: | SBD |
| Manufacturer | HEIDELBERG |
| Condition: | Good |
| Year: | 1969 |
| Incoterm: | |
| Cylinders Condition: | |
| Under Power: | Yes |
| Still in production: | Yes |
| Test possible: | Yes |
| Complete and in working condition: | Yes |
| Availability: | |
| Counter: | |
| Machine number: | |

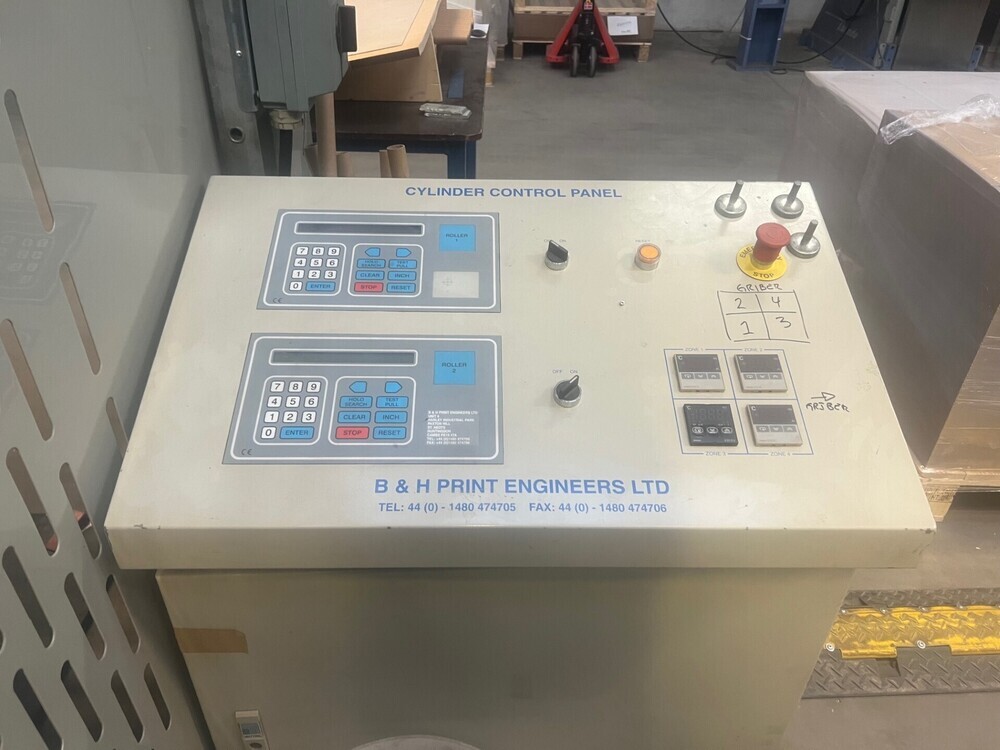

| Description: | Cylinder with B-H Hot-Foil Stamping System<>. Panel control with programmable and job adjustment, <>as:Temperature, Plate lenght, Film tension, Advance,<>Pre-Alarme metrage, Speed, ...<>. 3 Heating zones with 3 honeycomb plates<>. 3 Axes, 3 Advances<>. Pre-Loading |
Technical details
| Max. paper size | 640x900 mm |
|---|---|
| Smallest size | 290x400 mm |
| Image area | 620x890 mm |
| Speed | 4000 cycles/h. |
| Power supply | 10.5 kw |
| Length | 3700 mm |
| Width | 2450 mm |
| Height | 1850 mm |
| Weight approx. | 6000 kg |
| Colors | 1 |
| HS Code | 84431500 |
PRICE: Upon request
Images
