Offer 382200

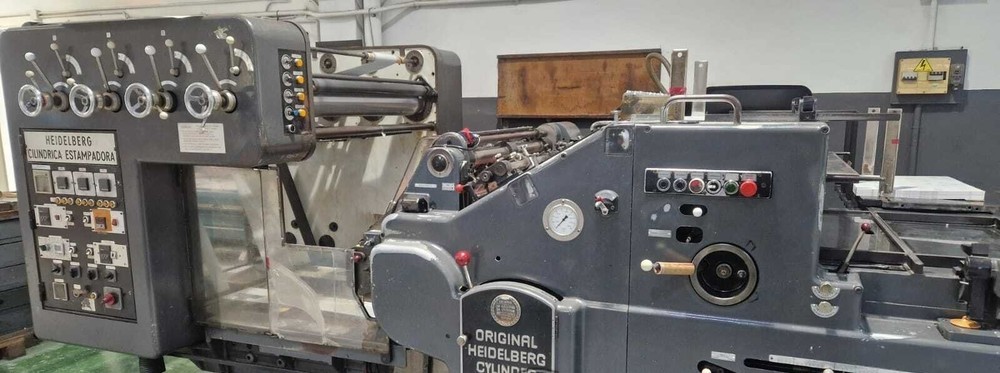

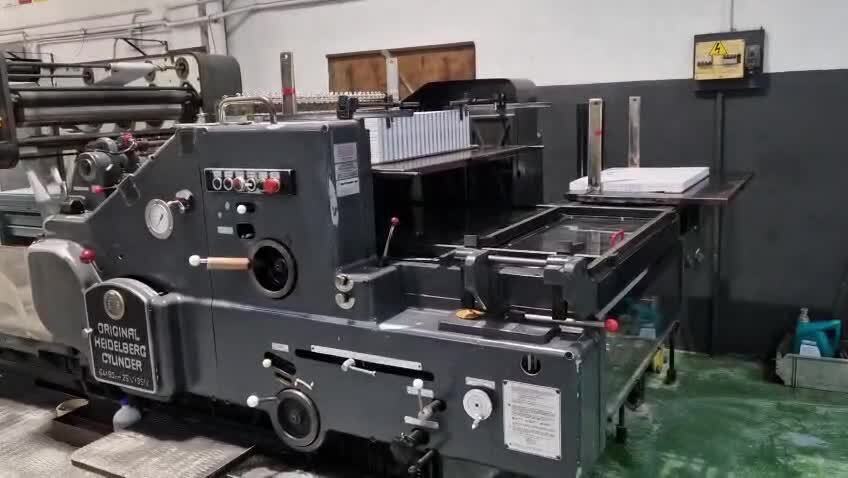

HEIDELBERG SBD from 1973
Cylinder
Offer Details
| Offer Number: | 382200 |
|---|---|
| Brand: | HEIDELBERG |
| Model: | SBD |
| Manufacturer | HEIDELBERG |
| Condition: | Good |
| Year: | 1973 |
| Incoterm: | Free Carrier |
| Cylinders Condition: | damage_free |
| Under Power: | No |
| Still in production: | No |
| Test possible: | No |
| Complete and in working condition: | Yes |
| Availability: | Immediately |
| Counter: | |
| Machine number: | |
| Description: | Heidelberg SBDP Original Foil Stamper Die Cutter<>Maximum Paper Size: 25 1/4" x 35" (640 x 900 mm)<>Minimum Paper Size: 11 7/16" x 15 3/4" (290 x 400 mm)<>Inside Chase Measurement: 25 1/4" x 33 7/16" (Standard Chase) / 25 1/4" x 34 1/4" (Skeleton Chase)<>Maximum Speed: 4,000 impressions per hour (iph)<>Power Requirement: 240V, 3-phase, 40-amp service<>Number of Rollers: Typically converted for die-cutting/foiling only; original letterpress configuration uses 2 form rollers<>Diameter of Rollers: 2 3/8" (approx. 60 mm)<>Dimensions: 12' 11/16" (Length) x 8' 7/16" (Width) x 4' 11" (Height)<>Weight (lbs): 13,224 lbs |
Technical details
| Max. paper size | 640x900 mm |
|---|---|
| Smallest size | 290x400 mm |
| Image area | 620x890 mm |
| Speed | 4000 cycles/h. |
| Power supply | 10.5 kw |
| Length | 3700 mm |
| Width | 2450 mm |
| Height | 1850 mm |
| Weight approx. | 6000 kg |
| Colors | 1 |
| HS Code | 84431500 |
PRICE: Upon request
Images
