Offer 382300

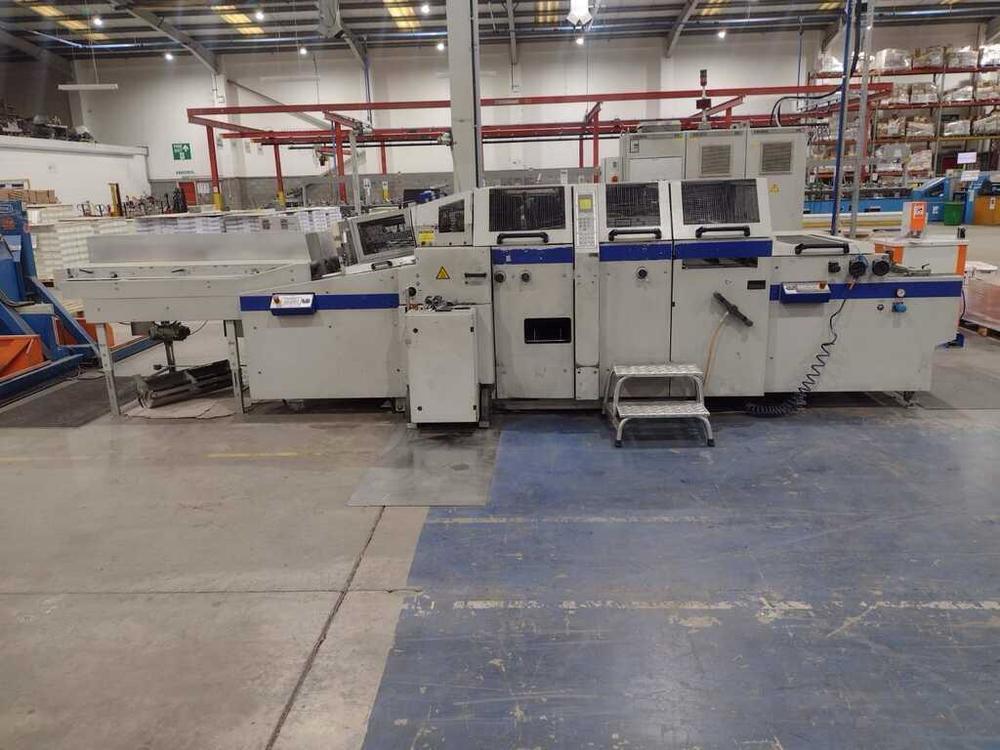

KOLBUS DA 270 from 2007
Casemaker
Offer Details
| Offer Number: | 382300 |
|---|---|
| Brand: | KOLBUS |
| Model: | DA 270 |
| Manufacturer | KOLBUS |
| Condition: | Good |
| Year: | 2007 |
| Incoterm: | |
| Cylinders Condition: | |
| Under Power: | Yes |
| Still in production: | Yes |
| Test possible: | Yes |
| Complete and in working condition: | Yes |
| Availability: | |
| Counter: | |
| Machine number: | |

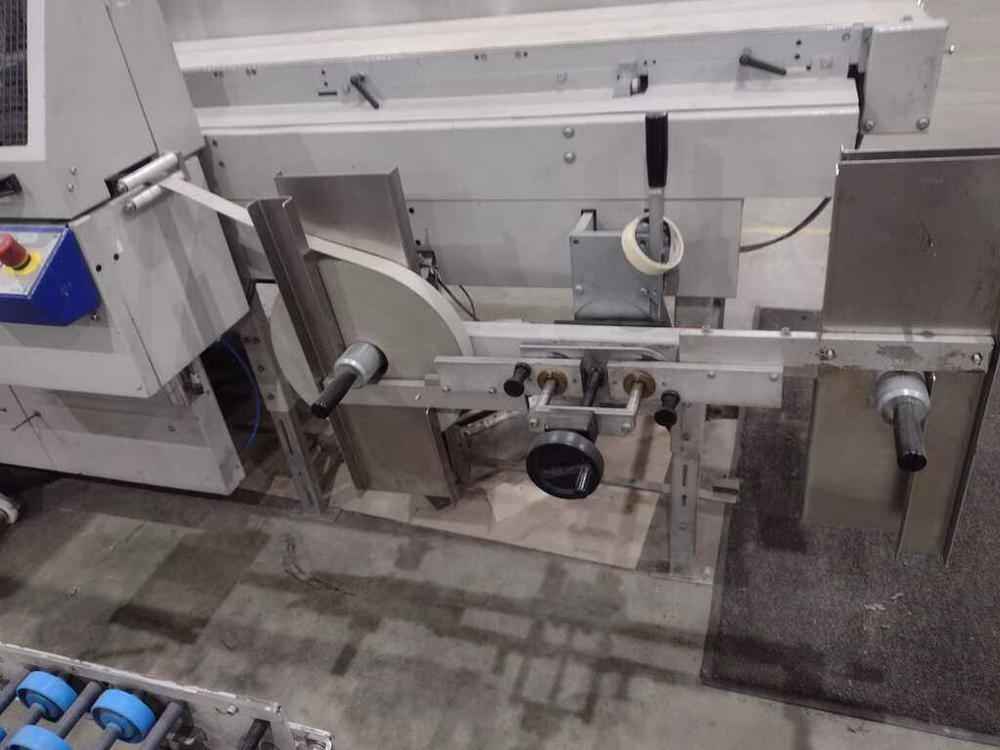

| Description: | Case maker with automatic cardboard feeder, automatic adjustment of sizes, <>Automatic cardboard feeder, <>double roll holder with automatic feeding and cutting to make covers with round loin, <>liner feeder, <>gluing unit with pre-heated gelatin tank, <>check the viscosity of the glue with viscometer and pump for water control, <>roller press, <>Roll tape output with counter. <>Exit to the right with possibility to left. |
Technical details
| Cover size max. | 670x390 mm |
|---|---|
| Cover size min. | 205x140 mm |
| Cloth height | 130 |
| Cloth width | 223 |
| Cardboard thickness | 1 to 4 mm |
| Cardboard width | 95 |
| Cardboard height | 140 |
| Joint width | 4 |
| Spine width | 14 |
| Turn in width closed | 8 |
| Centre strip roll thickness / width | 03, to 0,6 mm / 6 |
| Mechanical speed | 65 cycles/min. |
| HS Code | 84439959 HS Codes Classification of Other |
