Offer Number |
383107 |
Manufacturer |
YONG SHUN |
Model |
YS-R1300 |
Year |
2026 |
Availability |
45 days |
Counter |
|
In Production |
NO |
Upon Request
Description

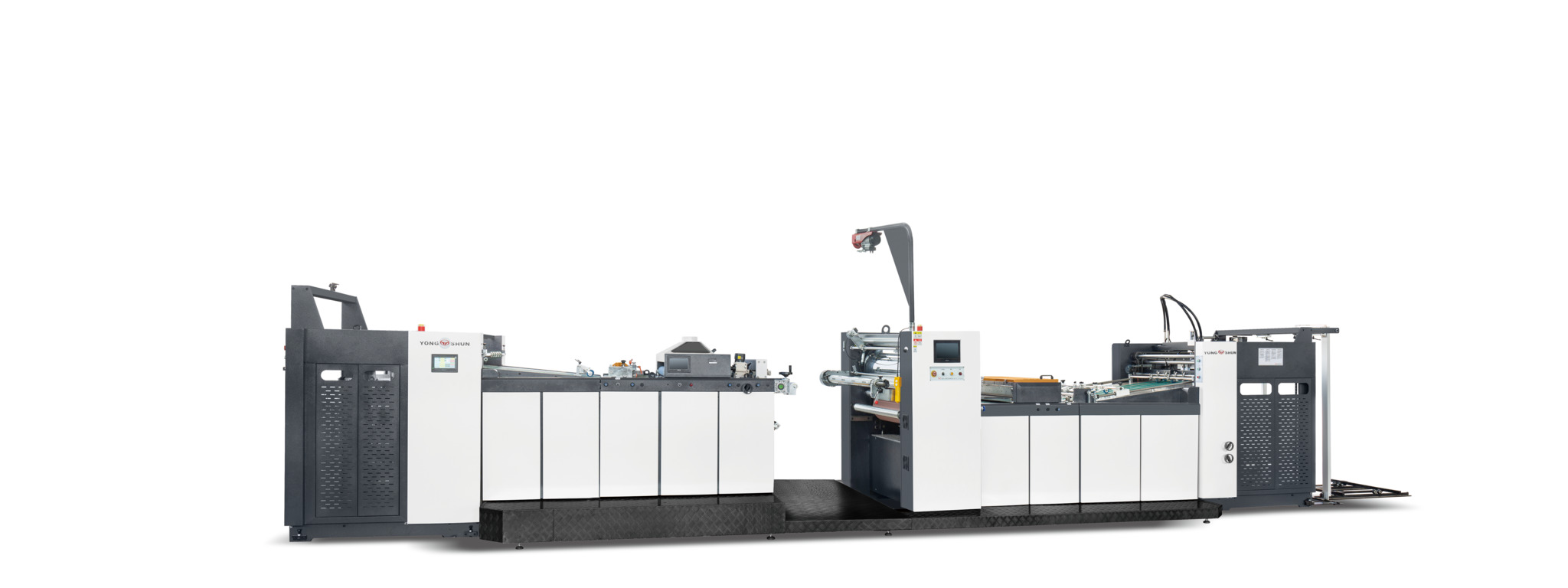

This machine is professional precated film lamination machine , it is high speed, high quality, high stability. Which can used for different printed paper material with high quality surface after printing processing, it can choose with according to the user’s requirement with different configuration. Round knife slitting with standard, Hot knife slitting for optional, chain knife slitting for optional , it can slit different material, such as OPP,PET,PVC.
Technical Details
- Max sheet size: 1300 x 1650 mm
- Min sheet size: 300 x 350mm
- Paper thickness: 100-500 g/㎡
- Speed: 20-100m/min
- Machine total Power: 24 KW according to the configuration
- Machine size: 12500 x 2470 x 2100mm
- Weight: 8000 KG
- Standard configuration main function(without powder cleaning): Round Knife
- Optional 1: Chain knife cutting (to be add as additional cost)
- Optional 2: Hot knife cutting (to be add as additional cost)
- Optional 3: Powder removing (to be add as additional cost)
- Applicable paper type: Offset plate, copper plate, gray background white
- Applicable film range: Opp,BOPP
- Suitable paper types: Offset, art paper, grey-back white
- Working power: 15-25kw
- Ce Certification: Yes
- Delivery time: 45 days
- Warranty: 1 Year
- Made in: China
Offer Details
- Brand: YONG SHUN
- Model: YS-R1300
- Condition: New
- Year: 2026
- Country: China
- Incoterm: Free On Board
- Under Power: NO
- Still in production: No
- Test possible: No
- Complete and in working condition: No
- Available: 45 days
