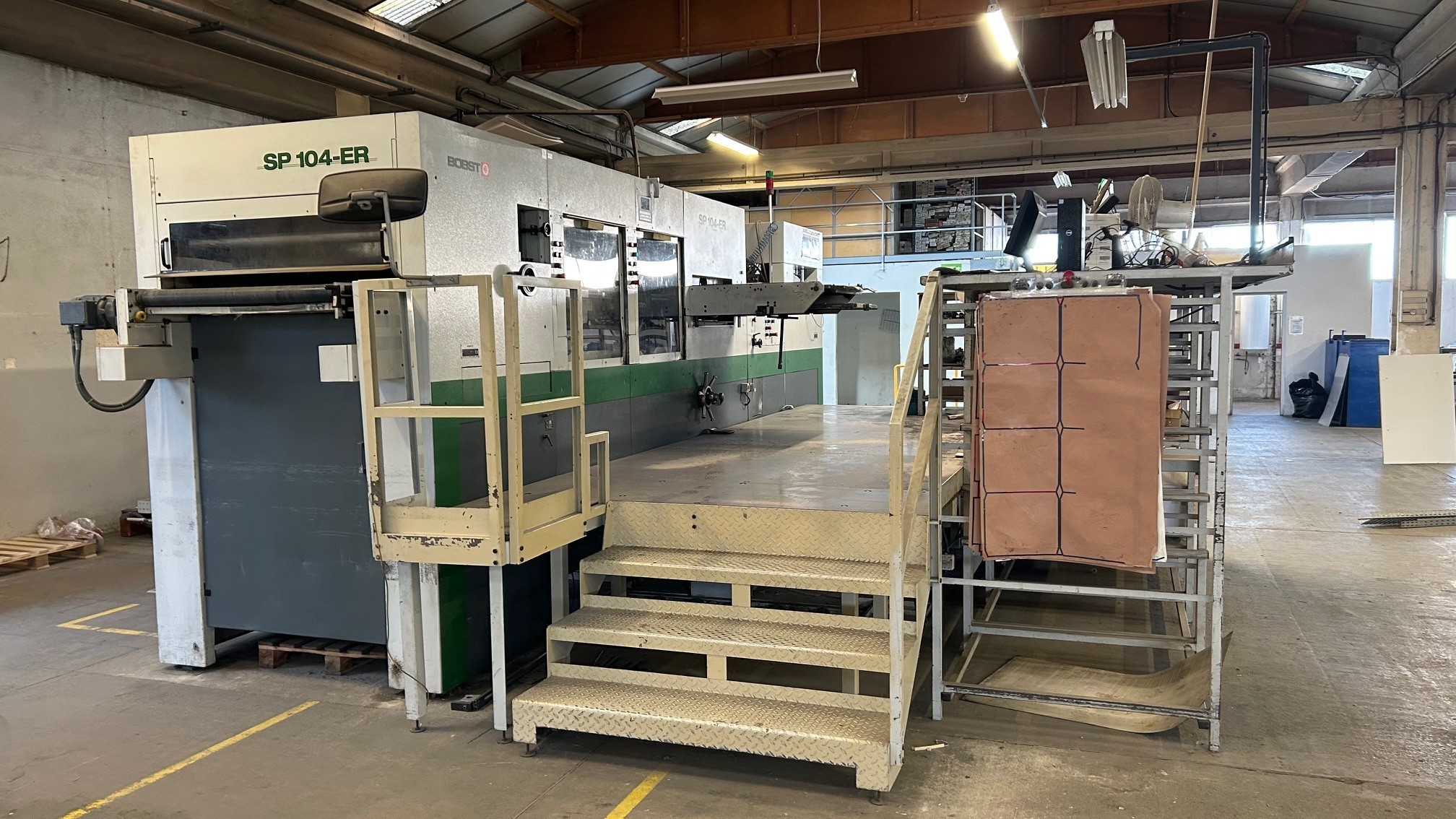

Offer 381275, a BOBST SP 104 ER from 2001

Die Cutter (Flatbed)

Offer Number

381275

Manufacturer

BOBST

Model

SP 104 ER

Year

2001

Counter

In Production

Yes

Upon Request

Request a Quotation

    Whatsapp

    Description

    M3B type feeder with stack movement and handle.<>A screw-on bottom forming frame with quick clamping for full format and resin protective plate.<>4 mm cutting plate with micrometric system.<>Mechanical double sheet<>Left margin puller stops.<>Optional lowering of the conveyor belt for Cppertinax mounting.<>A complete set of upper and lower ejection frames.<>An upper frame for conventional delivery outfeed.<>A lower delivery frame for conventional delivery outfeed.<>A preparation table with bar and needle equipment for traditional ejection.<>Chain train in very good condition with clear markings.<>Clutch rebuilt. All machine documentation.

    Technical Details

    • Sheet size max: 1040x740 mm
    • Sheet size min.: 400x350 mm
    • Platen pressure max.: 250 tons
    • Production speed: 8.000 sheets/h.
    • Paper: 80 - 90 g/m²
    • Carton Board: 2,000 g/m²
    • Corrugated board: 4 mm
    • HS Code: 84439959 HS Codes Classification of Other

    Offer Details

    • Brand: BOBST
    • Model: SP 104 ER
    • Condition: Good
    • Year: 2001
    • Country: Europe
    • Under Power: Yes
    • Still in production: Yes
    • Test possible: Yes
    • Complete and in working condition: Yes
